Glamping Equipment

3 Way Glamping Shower Unit - West Yorkshire

Description

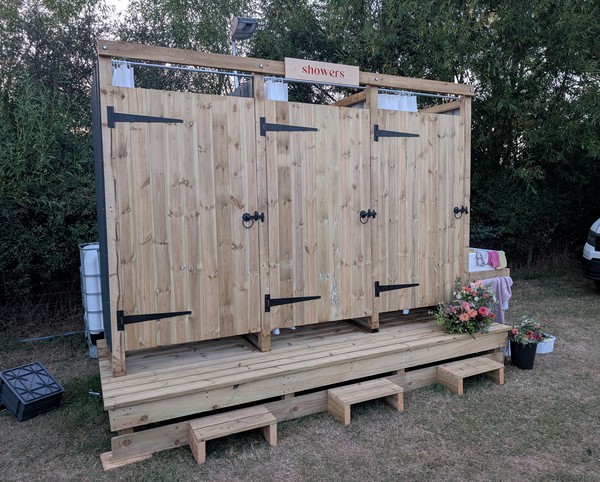

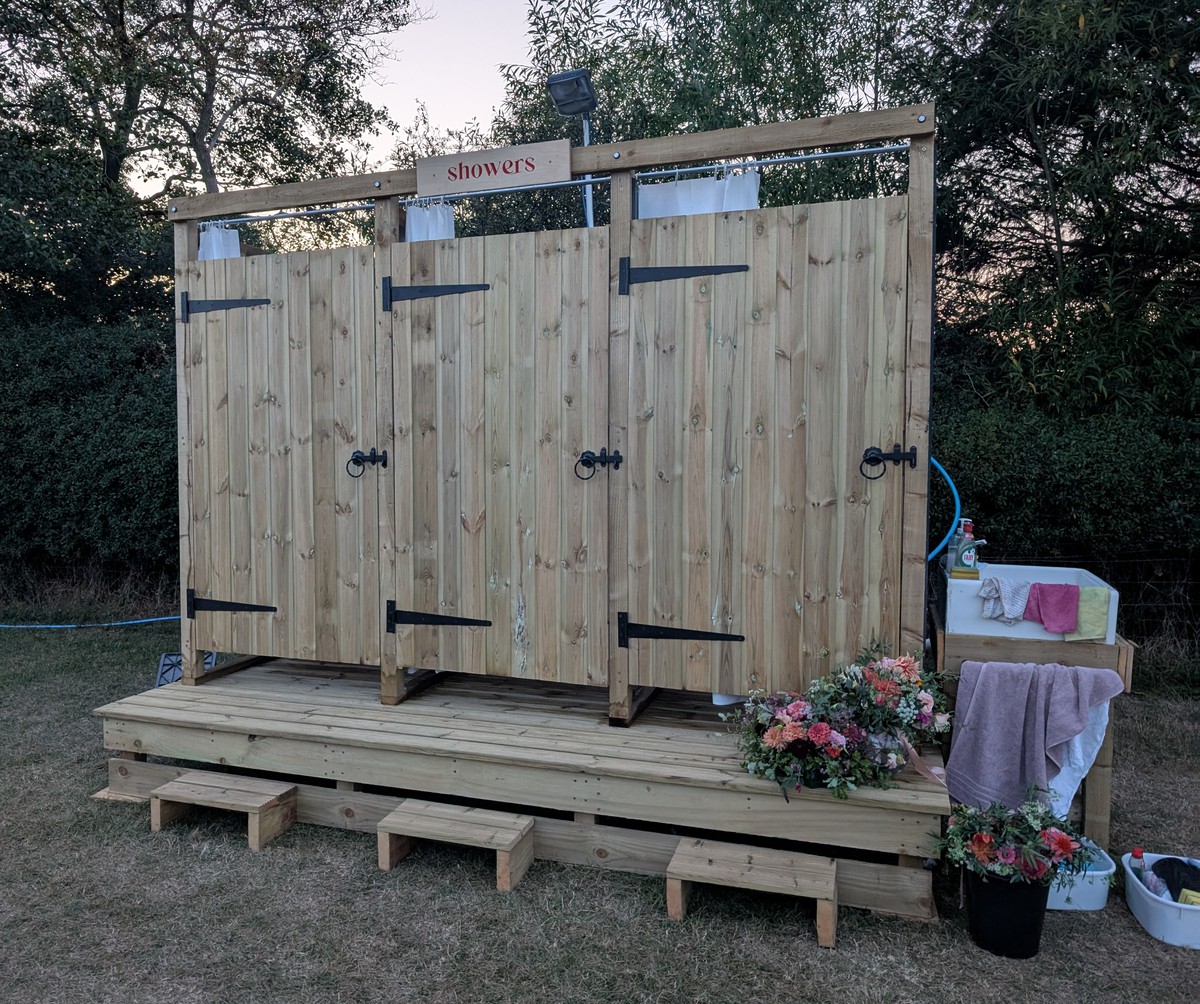

3 individual shower cubicles of timber and steel construction.

This freestanding unit was built for a week long festival wedding and is now surplus to requirements.

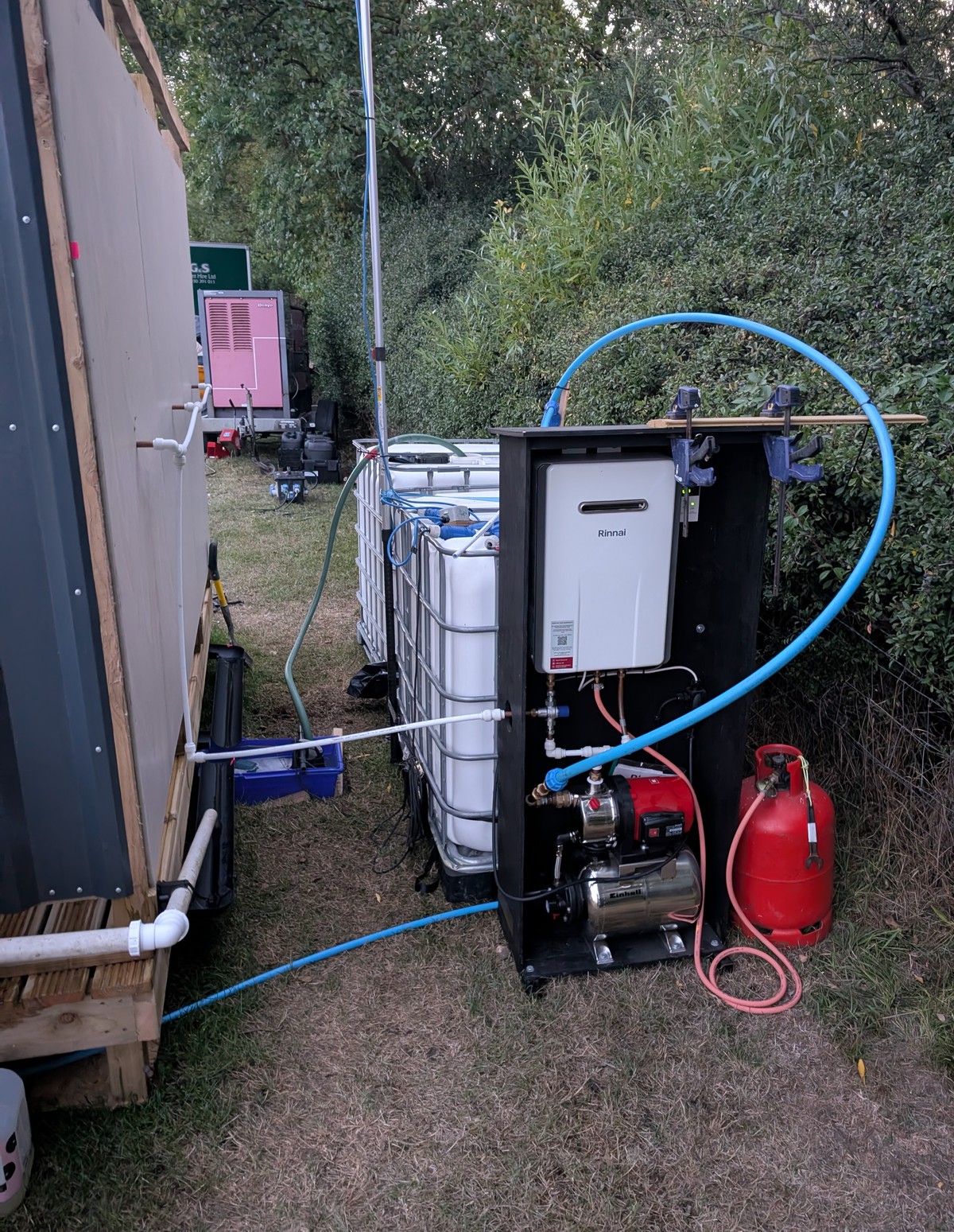

Designed to be run from an IBC for fresh water & draining into an additional IBC for grey.

We kept the fresh water topped up throughout the event with mains supply and the pump pulled water from this.

Grey water drained into a sump and was then pumped into an IBC for storage (submersible pump not included).

However if built over a soak away they could drain through the deck boards and into the ground without using any of the drainage plumbing.

All 3 showers operate at the same fixed temparature, as set by thermostatic valve post boiler.

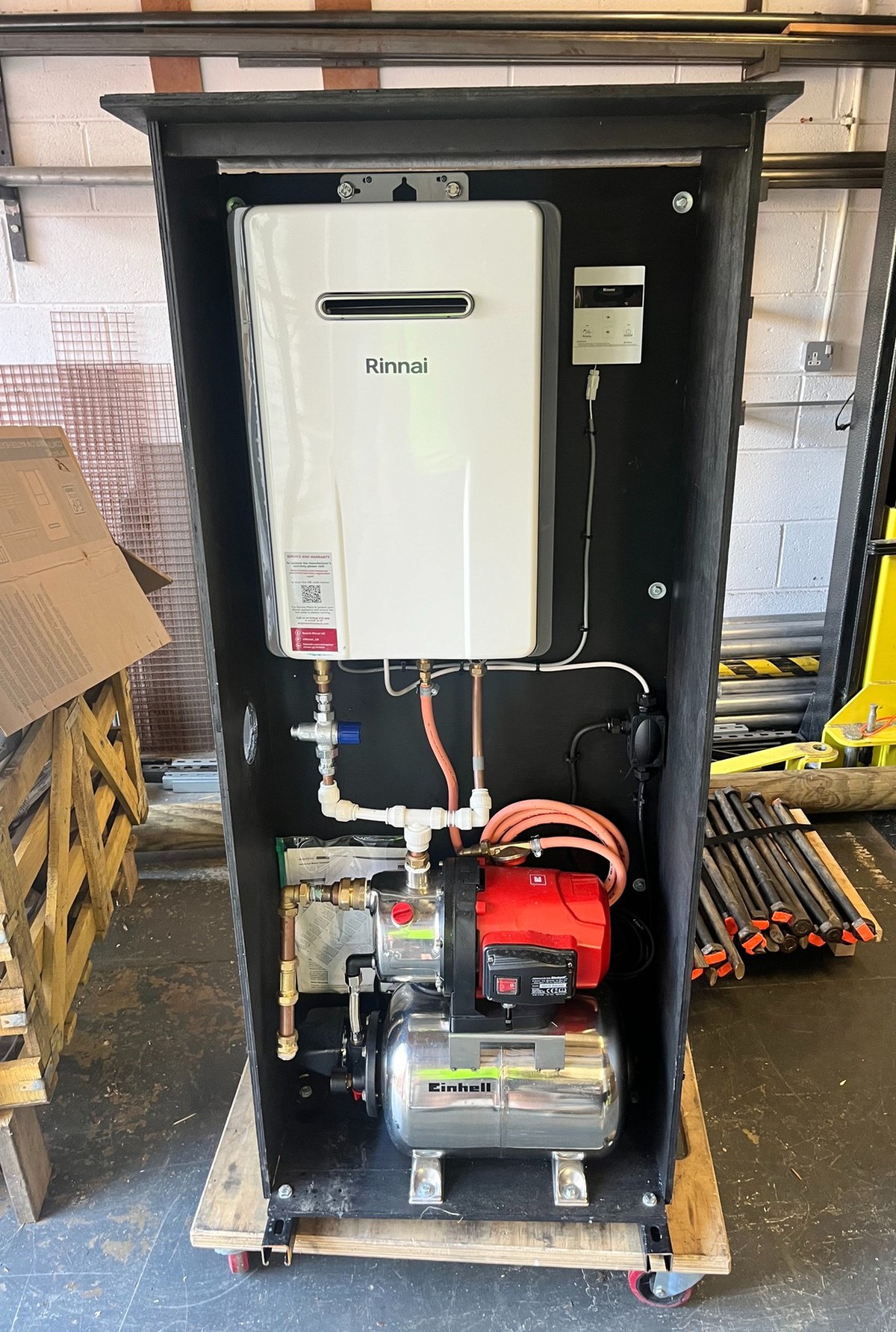

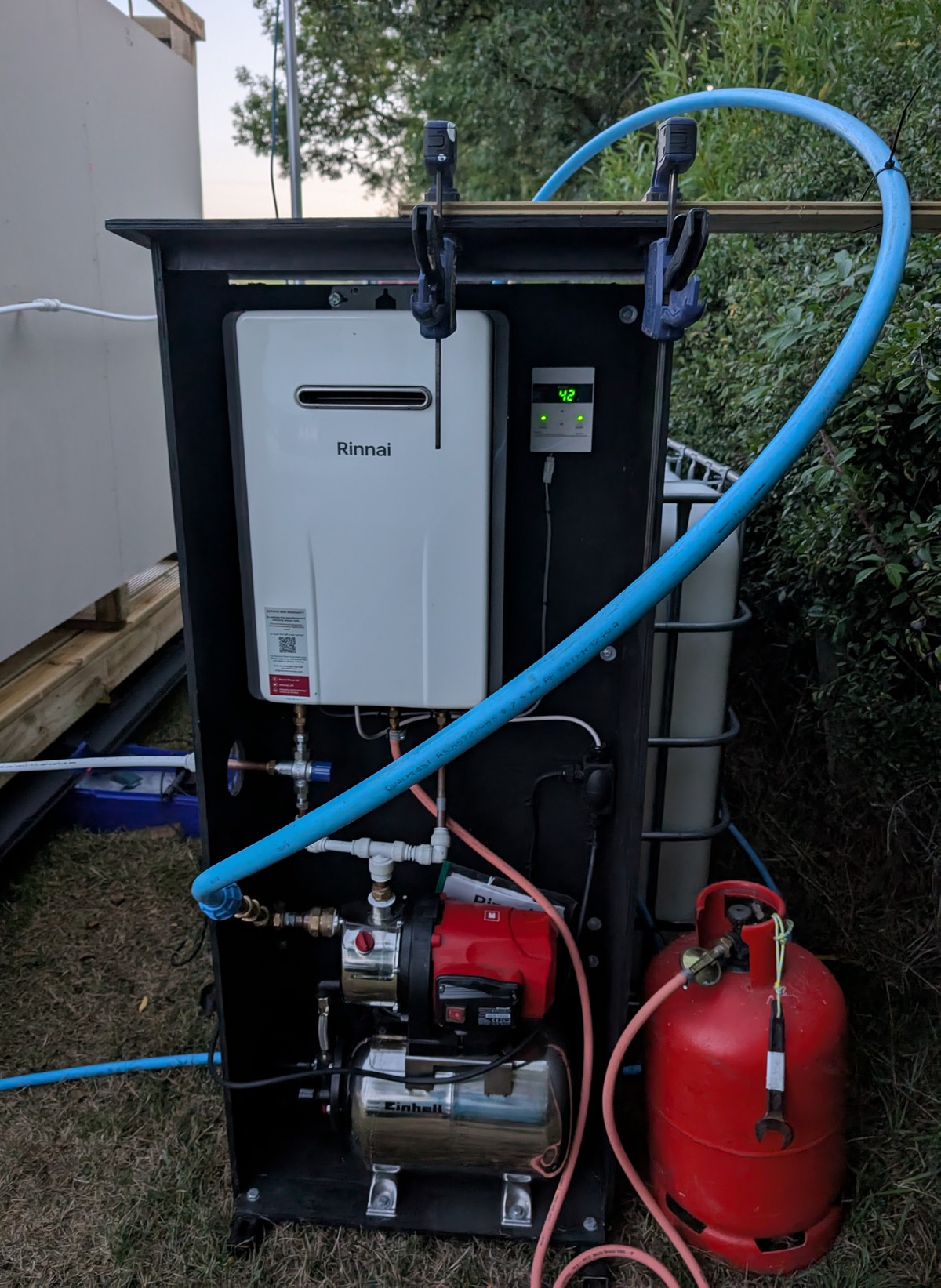

Included is the mobile water heater & pump comprising:

Lpg Rinnai 17e water heater
Boost pressure water pump
Thermostatic mixing valve to control the output temperature.

This happily runs all 3 showers at once.
Requires 16A 230V.

Base Dimensions ~3.5m x 1.5m x 0.4m + 2.2m Wall Height

The construction comes apart for transport.
IBCs can also be included.
Belfast sink not included.
